This tutorial walks you through creating an Angular monorepo with Nx. You'll build a small example application to understand the core concepts and workflows.

What you'll learn:

How to structure multiple Angular apps and libraries in a single repository
How Nx caching speeds up your local development and CI pipelines
How to run builds, tests, and serve commands efficiently across multiple projects
How to share UI components and utilities between Angular applications
How to fix CI failures directly from your editor with Nx Cloud

Prerequisite: Tutorial setup

This tutorial requires Node.js (v20.19 or later) installed on your machine.

Step 1: Creating a new Nx Angular workspace

Run the following command to create a new Nx workspace with the Angular template:

npx create-nx-workspace@latest my-nx-repo --template=nrwl/angular-template

Or create your workspace in the browser with CI pre-configured.

Step 2: verify your setup

Once the workspace is created, navigate into it and install dependencies:

cd my-nx-repo
npm install

Explore the Nx workspace setup

Let's take a look at the structure of our new Nx workspace:

Directorymy-nx-repo/
- Directoryapps/
  - Directoryapi/
    …
  - Directoryshop/
    …
  - Directoryshop-e2e/
    …
- Directorylibs/
  - Directoryapi/
    …
  - Directoryshared/
    …
  - Directoryshop/
    …
- eslint.config.mjs
- nx.json
- package-lock.json
- package.json
- tsconfig.base.json
- vitest.workspace.ts

The nx.json file contains configuration settings for Nx itself and global default settings that individual projects inherit.

Now, let's build some features and see how Nx helps get us to production faster.

Serving the app

To serve your new Angular app, run:

npx nx serve shop

The app is served at http://localhost:4200.

You can also use npx nx run shop:serve as an alternative syntax. The <project>:<task> format works for any task in any project, which is useful when task names overlap with Nx commands.

Project configuration

The project tasks are defined in the project.json file.

{
  "name": "shop",
  ...
  "targets": {
    "build": { ... },
    "serve": { ... },
    "extract-i18n": { ... },
    "lint": { ... },
    "test": { ... },
    "serve-static": { ... },
  },
}

Each target contains a configuration object that tells Nx how to run that target.

{
  "name": "shop",
  ...
  "targets": {
    "serve": {
      "executor": "@angular/build:dev-server",
      "defaultConfiguration": "development",
      "options": {
        "buildTarget": "shop:build"
      },
      "configurations": {
        "development": {
          "buildTarget": "shop:build:development",
          "hmr": true
        },
        "production": {
          "buildTarget": "shop:build:production",
          "hmr": false
        }
      }
     },
     ...
  },
}

The most critical parts are:

executor - this is of the syntax <plugin>:<executor-name>, where the plugin is an NPM package containing an Nx Plugin and <executor-name> points to a function that runs the task.
options - these are additional properties and flags passed to the executor function to customize it

To view all tasks for a project, look in the Nx Console project detail view or run:

npx nx show project shop

Project Details View (Simplified)

shop

Root: apps/shop

Type:Application

Targets

build
@angular/build:application
Cacheable

Modularization with local libraries

When you develop your Angular application, usually all your logic sits in the app's src folder. Ideally separated by various folder names which represent your domains or features. As your app grows, however, the app becomes more and more monolithic, which makes building and testing it harder and slower.

Directorymy-nx-repo/
- Directoryapps/
  - Directoryshop/
    Directorysrc/
    Directoryapp/
    …
    Directorycart/
    …
    Directoryproducts/
    …
    Directoryorders/
    …
    Directoryui/
    …

Nx allows you to separate this logic into "local libraries." The main benefits include

better separation of concerns
better reusability
more explicit private and public boundaries (APIs) between domains and features
better scalability in CI by enabling independent test/lint/build commands for each library
better scalability in your teams by allowing different teams to work on separate libraries

Create local libraries

Let's create a reusable design system library called ui that we can use across our workspace. This library will contain reusable components such as buttons, inputs, and other UI elements.

npx nx g @nx/angular:library libs/ui --unitTestRunner=vitest

Note how we type out the full path in the command to place the library into a subfolder. You can choose whatever folder structure you like to organize your projects.

Running the above command should lead to the following directory structure:

Directorymy-nx-repo/
- Directoryapps/
  - Directoryshop/
    …
- Directorylibs/
  - Directoryui/
    …
- eslint.config.mjs
- nx.json
- package.json
- tsconfig.base.json
- vitest.workspace.ts

Just as with the shop app, Nx automatically infers the tasks for the ui library from its configuration files. You can view them by running:

npx nx show project ui

In this case, we have the lint and test tasks available, among other inferred tasks.

npx nx lint ui
npx nx test ui

Import libraries into the shop app

All libraries that we generate are automatically included in the TypeScript path mappings configured in the root-level tsconfig.base.json.

{
  "compilerOptions": {
    ...
    "paths": {
      "@org/ui": ["libs/ui/src/index.ts"]
    },
    ...
  },
}

Hence, we can easily import them into other libraries and our Angular application.

You can see that the Ui component is exported via the index.ts file of our ui library so that other projects in the repository can use it. This is our public API with the rest of the workspace and is enforced by the library's build configuration. Only export what's necessary to be usable outside the library itself.

export * from './lib/ui/ui';

Let's add a simple Hero component that we can use in our shop app.

import { Component, Input, Output, EventEmitter } from '@angular/core';
import { CommonModule } from '@angular/common';

@Component({
  selector: 'lib-hero',
  standalone: true,
  imports: [CommonModule],
  template: `
    <div [ngStyle]="containerStyle">
      <h1 [ngStyle]="titleStyle">{{ title }}</h1>

      <p [ngStyle]="subtitleStyle">{{ subtitle }}</p>
      <button (click)="handleCtaClick()" [ngStyle]="buttonStyle">
        {{ cta }}
      </button>
    </div>
  `,
})
export class Hero {
  @Input() title!: string;
  @Input() subtitle!: string;
  @Input() cta!: string;
  @Output() ctaClick = new EventEmitter<void>();

  containerStyle = {
    backgroundColor: '#1a1a2e',
    color: 'white',
    padding: '100px 20px',
    textAlign: 'center',
  };

  titleStyle = {
    fontSize: '48px',
    marginBottom: '16px',
  };

  subtitleStyle = {
    fontSize: '20px',
    marginBottom: '32px',
  };

  buttonStyle = {
    backgroundColor: '#0066ff',
    color: 'white',
    border: 'none',
    padding: '12px 24px',
    fontSize: '18px',
    borderRadius: '4px',
    cursor: 'pointer',
  };

  handleCtaClick() {
    this.ctaClick.emit();
  }
}

Then, export it from index.ts.

export * from './lib/hero/hero';
export * from './lib/ui/ui';

We're ready to import it into our main application now.

import { Component } from '@angular/core';
import { RouterModule } from '@angular/router';
import { NxWelcome } from './nx-welcome';
// importing the component from the library
import { Hero } from '@org/ui';

@Component({
  selector: 'app-root',
  standalone: true,
  imports: [RouterModule, NxWelcome, Hero],
  templateUrl: './app.html',
  styleUrl: './app.css',
})
export class App {
  protected title = 'shop';
}

Now update the template file to use the Hero component:

<lib-hero
  title="Welcmoe shop"
  subtitle="Build something amazing today"
  cta="Get Started"
></lib-hero>
<router-outlet></router-outlet>

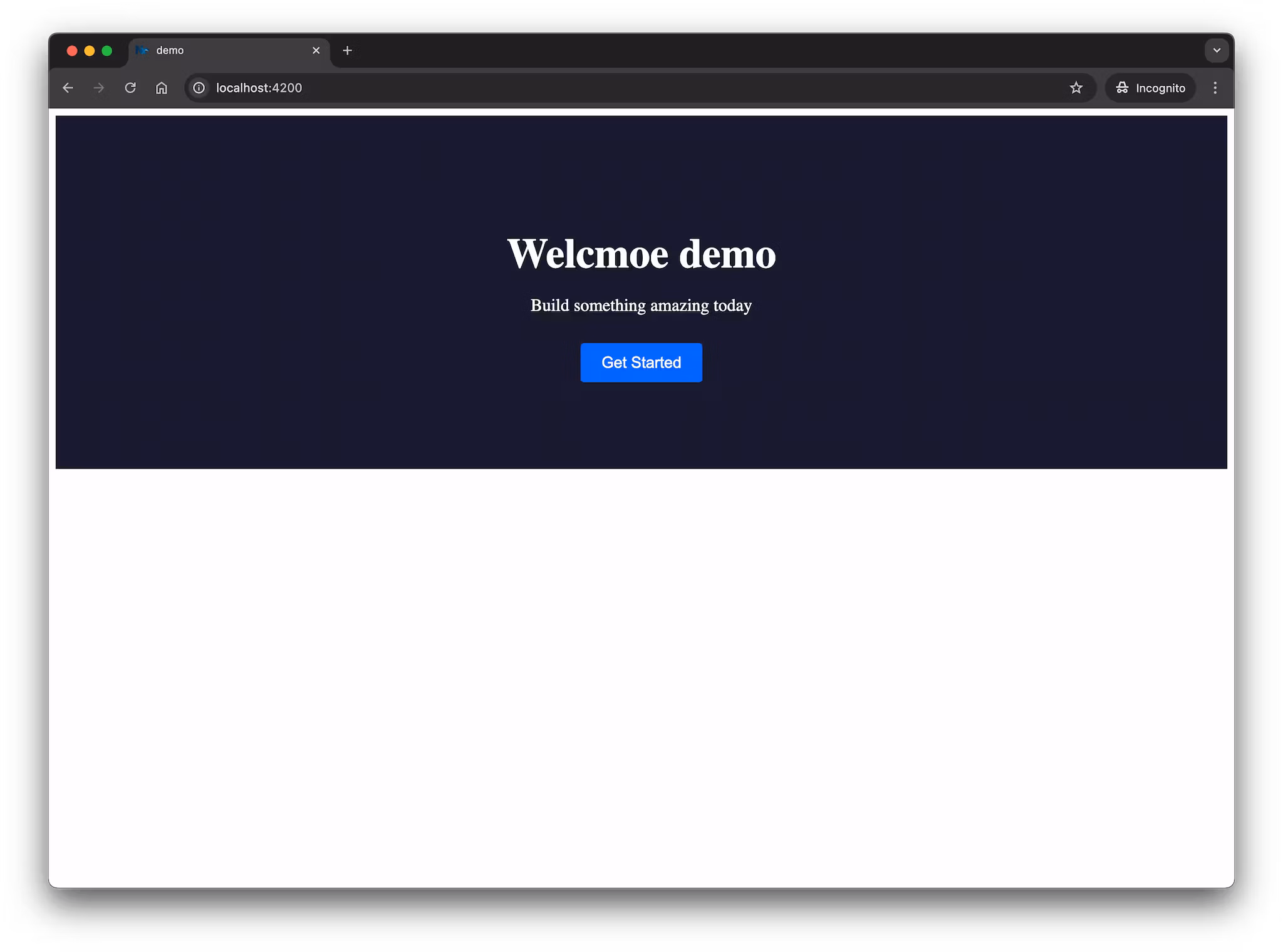

Serve your app again (npx nx serve shop) and you should see the new Hero component from the ui library rendered on the home page.

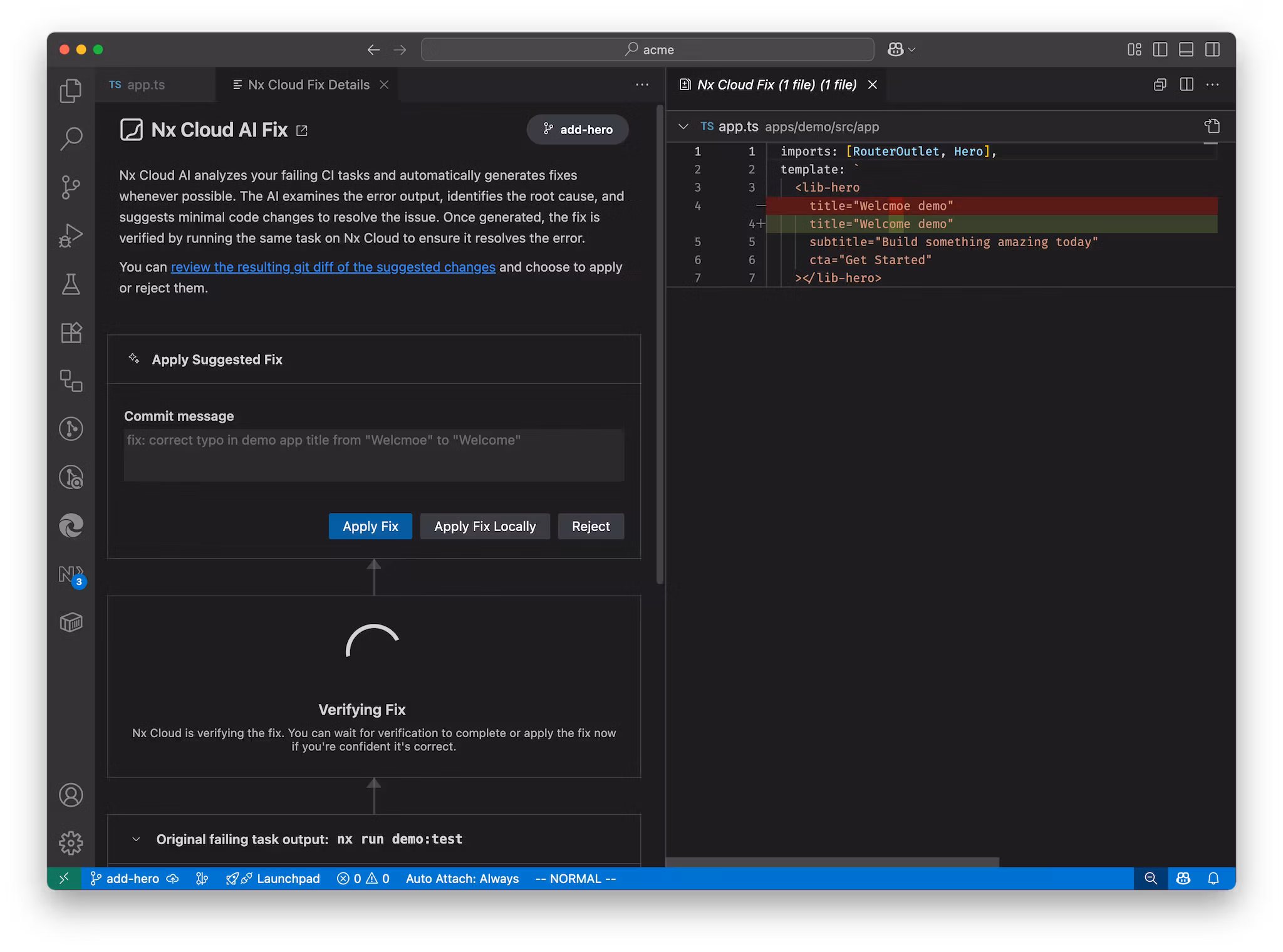

If you have keen eyes, you may have noticed that there is a typo in the App component. This mistake is intentional, and we'll see later how Nx can fix this issue automatically in CI.

Visualize your project structure

Nx automatically detects the dependencies between the various parts of your workspace and builds a project graph. This graph is used by Nx to perform various optimizations such as determining the correct order of execution when running tasks like npx nx build, identifying affected projects and more. Interestingly, you can also visualize it.

Just run:

npx nx graph

You should be able to see something similar to the following in your browser.

Let's create a git branch with the new hero component so we can open a pull request later:

git checkout -b add-hero-component
git add .
git commit -m 'add hero component'

Testing and linting - running multiple tasks

Our current setup not only has targets for serving and building the Angular application, but also has targets for unit testing, e2e testing and linting. The test and lint targets are defined in the application project.json file. We can use the same syntax as before to run these tasks:

npx nx test shop # runs the tests for shop
npx nx lint ui           # runs the linter on ui

More conveniently, we can also run tasks in parallel using the following syntax:

npx nx run-many -t test lint

This is exactly what is configured in .github/workflows/ci.yml for the CI pipeline. The run-many command allows you to run multiple tasks across multiple projects in parallel, which is particularly useful in a monorepo setup.

There is a test failure for the shop app due to the updated content. Don't worry about it for now, we'll fix it in a moment with the help of Nx Cloud's self-healing feature.

Local task cache

One thing to highlight is that Nx is able to cache the tasks you run.

Note that all of these targets are automatically cached by Nx. If you re-run a single one or all of them again, you'll see that the task completes immediately. In addition, (as can be seen in the output example below) there will be a note that a matching cache result was found and therefore the task was not run again.

   ✔  nx run ui:lint
   ✔  nx run ui:test
   ✔  nx run shop:lint
   ✖  nx run shop:test

—————————————————————————————————————————————————————————————————————————————————————————————————————————

 NX   Ran targets test, lint for 2 projects (1s)

   ✔  3/4 succeeded [3 read from cache]

   ✖  1/4 targets failed, including the following:

      - nx run shop:test

Again, the shop:test task failed, but notice that the remaining three tasks were read from cache.

Not all tasks might be cacheable though. You can configure the cache settings in the targetDefaults property of the nx.json file. You can also learn more about how caching works.

Next steps

Here are some things you can dive into next:

Set up CI with remote caching and self-healing
Read more about how Nx compares to the Angular CLI
Learn more about the underlying mental model of Nx
Learn about popular generators such as how to setup Tailwind
Learn how to migrate your existing Angular CLI repo to Nx
Learn about enforcing boundaries between projects
Setup Storybook for our shared UI library
